The KÜHNE Automatic Weigh Packaging System is a commercial premade-bag packaging solution designed for automated weighing, filling and handling of coffee and compatible granular products.
The system combines a 1-head linear weigher, automatic bag packer and recommended mini belt conveyor, supporting filling weights up to 1,000 g. It operates at approximately 4–6 bags per minute, with stated weighing accuracy of ±0.2–2.0 g, depending on the product and target portion.
Designed primarily for side gusset bags, the system can also be configured for stand-up, side-sealed, flat-bottom and K-seal bags. Optional equipment includes a faster 2-hopper weighing system, nitrogen flushing, printing and vacuum functions.

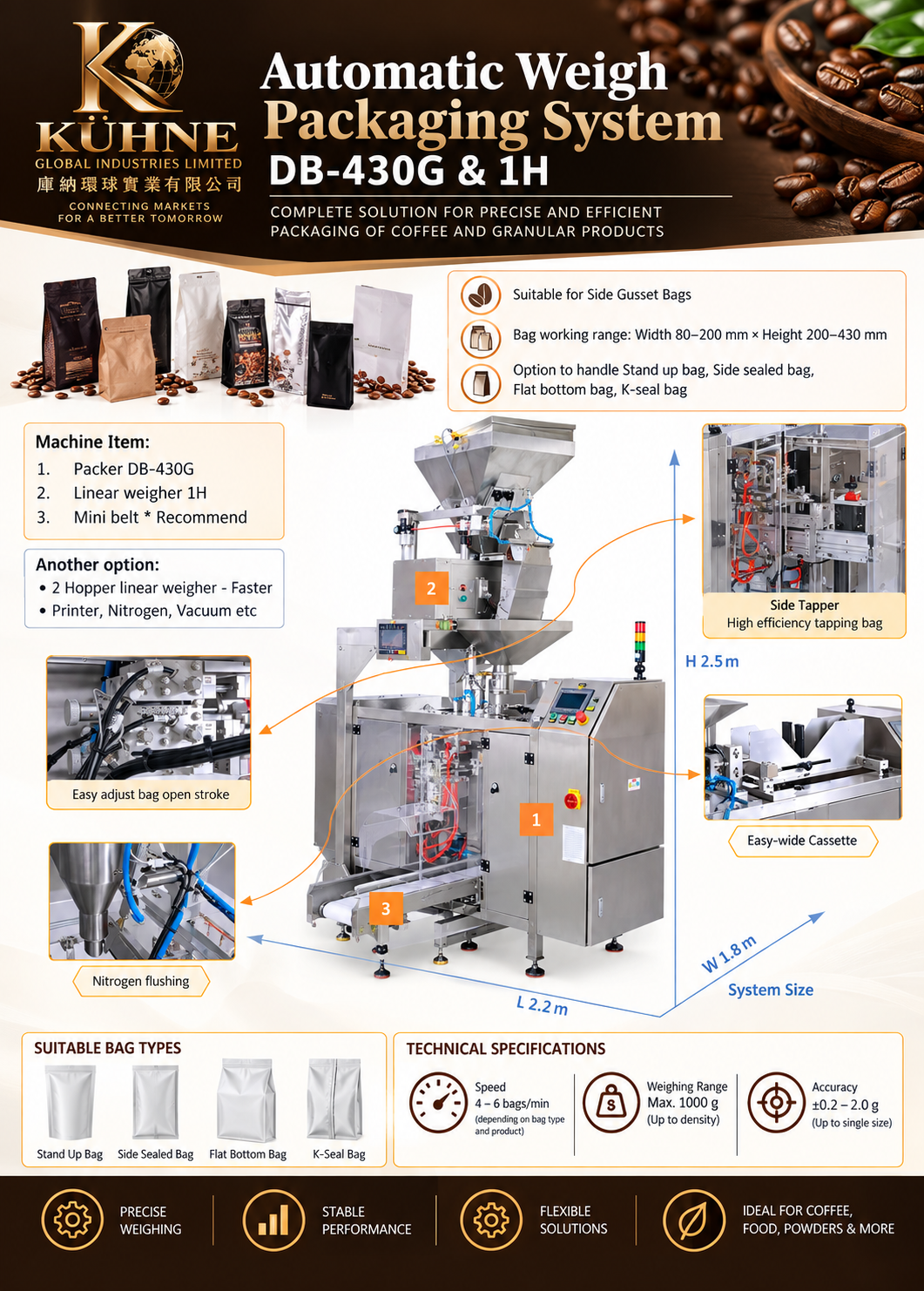

KÜHNE Automatic Weigh Packaging System – Up to 1 kg
Filling / Weighing Range: Up to 1,000 g
Speed: 4–6 bags/min
Stated Accuracy: ±0.2–2.0 g
Bag Width: 80–200 mm
Bag Height: 200–430 mm
Primary Bag Type: Side gusset bag
System Dimensions: Approx. L 2.2 × W 1.8 × H 2.5 m
Weighing System: 1-head linear weigher
Recommended Transfer: Mini belt conveyorActual capacity, speed and weighing performance depend on product density, individual portion size, bag dimensions and configuration.
Up to 1 kg Filling Capacity
Designed for quantitative weighing and packaging of individual portions up to 1,000 g, subject to product density.
Automatic Weighing & Packaging
Integrates weighing, bag handling and packaging functions into a coordinated commercial production system.
Flexible Premade-Bag Compatibility
The standard application is designed around side gusset bags, with additional configurations available for other premade bag formats.
Adjustable Bag Opening
The bag-opening stroke can be adjusted according to the selected bag dimensions and packaging setup.
Easy-Width Cassette
Adjustable cassette configuration supports different compatible bag widths within the specified operating range.
Nitrogen Flushing
Nitrogen flushing can be incorporated for packaging applications requiring modified internal bag atmosphere.
Modular Configuration
The system can be expanded with additional weighing, printing, vacuum and product-transfer equipment.
Standard System Configuration
- Automatic Bag Packer
- 1-Head Linear Weigher
- Mini Belt Conveyor — Recommended
Available Options
- 2-hopper linear weigher for increased throughput
- Nitrogen flushing
- Printing system
- Vacuum function
- Additional product feeding equipment
- Additional bag transfer equipment
The final system is configured according to product characteristics, bag format and required production capacity.
KÜHNE Global Industries Limited supplies configurable commercial weighing and packaging systems for coffee producers, roasters, food manufacturers and other B2B packaging operations.
Project support can include:
- Packaging-system configuration
- Product compatibility assessment
- Bag compatibility assessment
- Filling-weight configuration
- Production-line planning
- Nitrogen-flushing configuration
- Optional equipment selection
- Technical documentation
- Operator guidance
- Spare-parts and after-sales support
Final equipment scope is defined in the individual commercial quotation.
Performance: The stated 4–6 bags/min production rate depends on filling weight, product flow characteristics and bag type.
Accuracy: The stated ±0.2–2.0 g accuracy depends on the individual target portion and product characteristics.
Maximum Weight: The stated maximum is 1,000 g, subject to product density and configuration.
Bag Compatibility: Actual compatibility should be confirmed using the customer’s bag dimensions and samples.
Configuration: Optional components can materially change system dimensions, workflow and production capacity.
Production Lead Time: Approximately 55–65 days as stated for this system configuration. Final lead time should be confirmed in the commercial quotation.
For an accurate system configuration and quotation, please provide:
- Product to be packed
- Target filling weight
- Product density where available
- Required bags per minute
- Bag type
- Bag width and height
- Bag material
- Zipper/valve requirements
- Whether nitrogen flushing is required
- Whether vacuum is required
- Printing requirements
- Product and bag photographs
- Destination country and postal code
PRICE ON REQUEST — Commercial quotation supplied according to the required configuration.
- Roasted coffee beans
- Compatible granular coffee products
Food & Granular Products
- Grains
- Seeds
- Selected nuts
- Dry granular foods
- Other compatible free-flowing products
Powder compatibility should be confirmed through product testing rather than assumed from the general system configuration.
Sales Type: B2B / Commercial Equipment
Pricing: Price on Request
Ordering: Commercial quotation followed by bank transfer
Configuration: Customer/project specific
Production Lead Time: Approx. 55–65 days, subject to final confirmation
Shipping: According to destination and agreed Incoterms
Installation & Training: According to project requirements
Testing: Product and bag samples may be requested before final configuration.The typical workflow is:
Product Feeding → Linear Weighing → Premade Bag Feeding → Bag Opening → Product Filling → Optional Nitrogen / Vacuum Process → Bag Closing/Processing → Finished Bag Transfer
The precise sequence depends on the selected configuration and optional equipment.
Standard Bag Type
Side Gusset Bag
Optional Bag Types
- Stand-Up Bag
- Side-Sealed Bag
- Flat-Bottom Bag
- K-Seal Bag
Bag Working Range
Width: 80–200 mm
Height: 200–430 mmCompatibility depends on bag construction, dimensions, material, zipper/valve configuration and product characteristics.
2-Hopper Linear Weigher
Optional alternative where higher weighing throughput is required.Mini Belt Conveyor
Recommended for controlled transfer of finished packages.Nitrogen Flushing
Optional integration for applications requiring nitrogen treatment.Vacuum System
Available as an optional packaging function.Printing System
